Club Store Tray.

Warehouse clubs plan their floors by the pallet, so tray footprints have to tile a 48 x 40 inch pallet without overhang. The club's packaging manual gives the footprint, the pallet pattern and often the tear line position before any artwork starts.

We check your spec against the manual first, then build the die. A wrong footprint can get a pallet turned away at the receiving dock.

The bottom tray carries the whole column above it, so we specify board by compression, not by looks. Heavy B or C flute is the starting point, with doubled walls or corner posts added when the pallet is tall or the product is dense.

Send the unit weight, the count per tray and the number of layers, and we'll work out the board from the full pallet load.

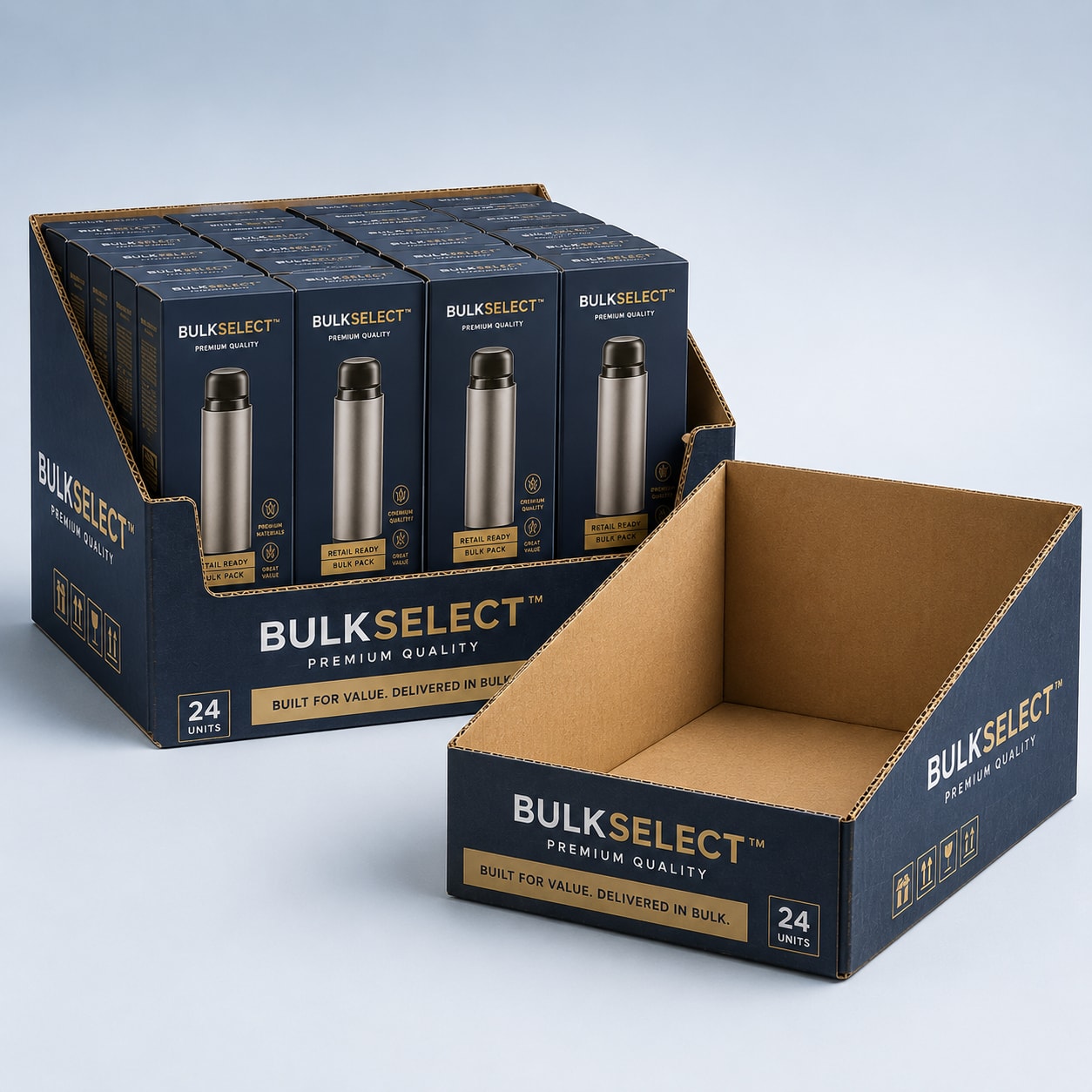

A perforated line across the front lets staff pull away the top of the case and leave an open tray facing the aisle. No knife is needed, and the pallet goes straight onto the floor as the display.

We place the perforation so the remaining wall still holds its shape. The trade-off is visibility against column strength, since a lower front shows more product but carries less load.

Print it large and simple, because shoppers read the pallet from several feet away. A bold brand band across the front and sides does the work, and flexo print on corrugated handles it at channel volumes.

Count, rotation and handling marks go on as operational print alongside the branding. The club manual usually dictates where they sit.

Our trays typically run from 12 x 10 inches up to 24 x 20 inches, chosen so a whole number fills each pallet layer. A 24 x 20 tray tiles four to a layer, and a 12 x 10 tray tiles sixteen.

Wall height is set by the product and how much of it you want visible. We work from the retailer's footprint and your case count.

Club store trays have a 500-piece minimum with us. Club programmes almost always run well past that, since a single store order can mean several full pallets across a region.

The die is built to your pallet-modular footprint, so reorders run on the same tool.

Expect 7 to 10 business days once the proof is approved, and 5 to 7 if the launch date forces a rush. A sample tray takes 5 to 7 business days, and for club work we'd load it and stack-test it before the pallet run.

You get the sample cost back against the production order. Allow extra time if your buyer needs to approve the sample on the club's side.

They're built to, with walls and corners stiff enough that stretch or shrink wrap doesn't pull the top layer inward. A pallet that arrives square gets accepted and set on the floor without anyone repacking it.

Recycled corrugated grades are standard in the club channel, and the trays go straight into the store's baling stream once the product sells through.
